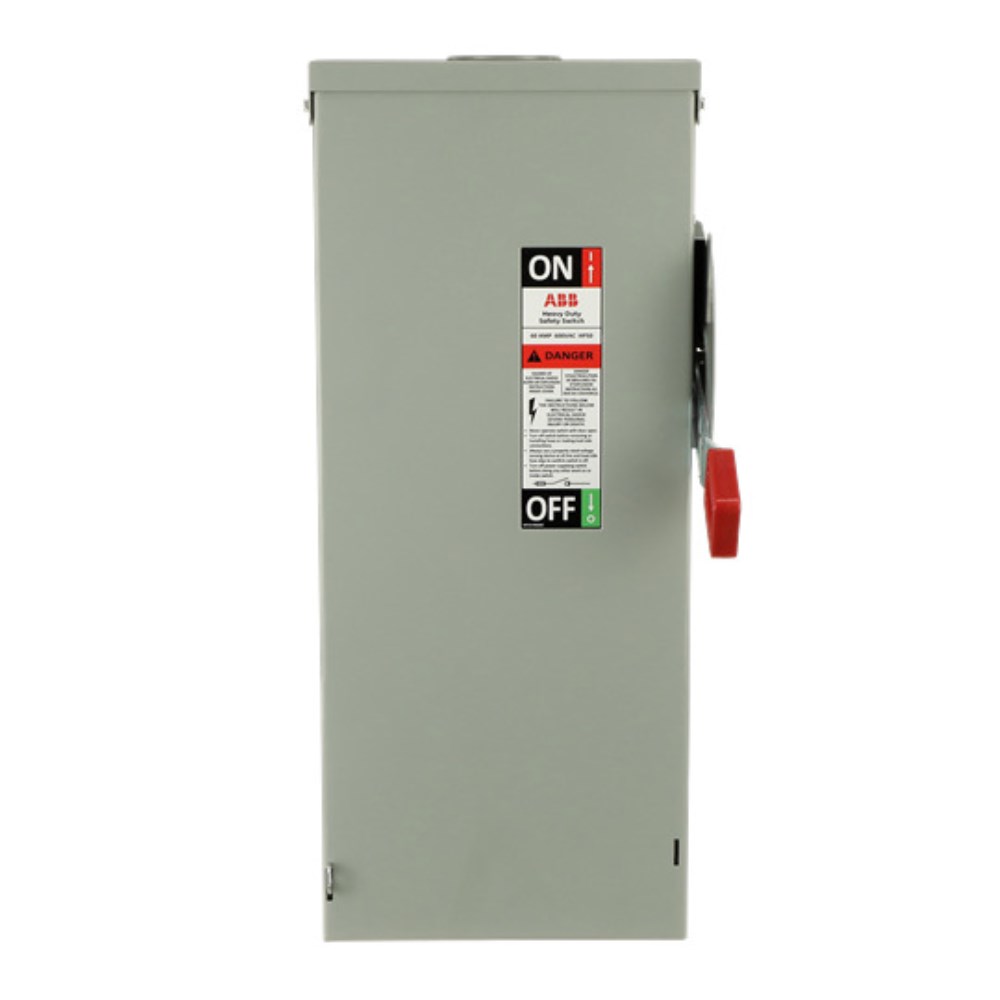

ABB SAFETY SWITCH 3PH FUSIBLE 60A 600V 3P3W HEAVY DUTY NEMA 3R WEATHERPROOF **NOT-SERVICE-ENTRANCE-RATED**

*** ABB Type TH heavy duty safety switches are service entrance rated ONLY when a "C" is in the part number, e.g. TH4324C ***

Type TH heavy duty safety switches are designed for commercial and industrial applications where safety, high performance and continuity of service are essential. They are available in 30-1200 amps, 600 VAC, 600 VDC maximum, fusible and non-fusible units, and in NEMA Type 1 (indoor), Type 3R (outdoor), Type 4/4X (water and dust-tight, corrosion resistant), and Type 5/12 (drip and dust-tight) enclosures. When used with Class R or J fuses, 30-600 amp switches have a cUL Listed short-circuit rating of 200,000 rms symmetrical amps. Switches rated 800-1200 amps use Class L fuses and have a cUL Listed short circuit rating of 100,000 rms symmetrical amps.

Features:

• 30-1200 Amperes
• 600 Volts AC, 600 Volts DC
• 50/60 Hz
• UL/cUL Listed (UL 98/CSA-C22.2 No.4-04)
• NEMA Enclosed Safety Switch Standard KS1-2001
• Applications: Utility service entrance, Commercial and industrial applications, Oil and gas industry, Solar and back-up power, Grid to charger
• Galvanized steel enclosure feastures a durable polyester powder-coat finish that offers superior rust protection in outdoor applications
• Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
• Clear line shield allows visual confirmation of blade positions while helping to protect against accidental contact with live parts. Optional premium-sized window helps ensure safer conditions
• Three-point mounting pattern speeds installation and simplifies ganging in close quarters
• Plated blades provide visible confirmation of contact position
• Direct-drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life
• Highly visible ON/OFF label and coin-proof integral interlock reduces potential for error and tampering
• Bright red donut handle, ideal for hook stick operation, accepts three padlocks in the OFF position
• Cu-Al lugs are 60/75 degree C rated to permit greater wire selection
• Accessories, such as auxiliary switch kits, are UL Listed for quick and easy field installation (or they may be factory installed)
• Spring-reinforced fuse clips; Suitable for Class H, K or R fuses, where applicable
• Coin-proof, defeatable dual interlocks meet all safety inspection requirements
• 30-200 amp NEMA Type 5/12 switches are suitable for mill duty applications
• Optional premium-sized window helps ensure safer conditions
