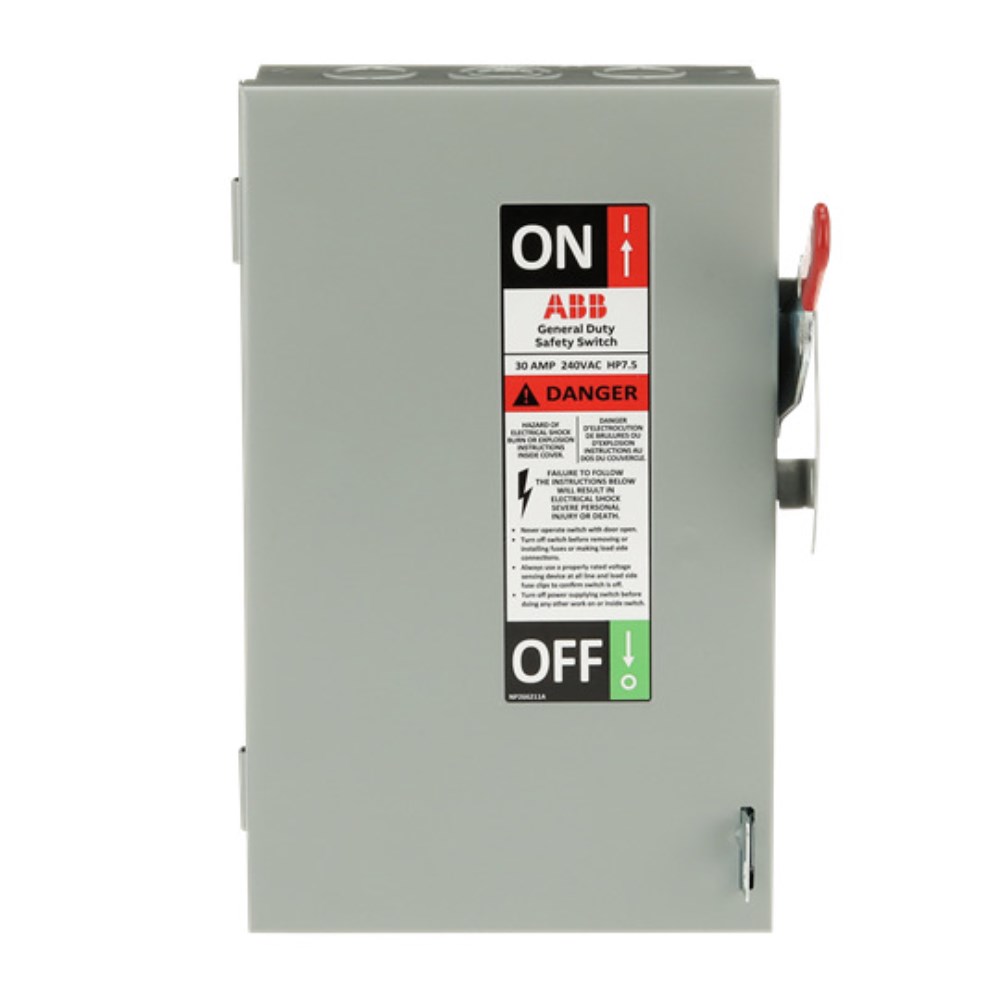

ABB SAFETY SWITCH 3PH FUSIBLE 30A 240V 3P4W SOLID NEUTRAL GENERAL DUTY NEMA 1 **NOT-SERVICE-ENTRANCE-RATED**

*** ABB Type TG general duty safety switches are NOT SERVICE ENTRANCE RATED. ***

ABB Type TG general duty safety switches are designed for residential and light commercial applications where duty is not severe. They are available in 30-600 amps, 240 Vac, 250 Vdc maximum in both fusible and non-fusible units, and in NEMA Type 1 (indoor) and Type 3R (outdoor) enclosures. The cUL Listed short-circuit rating is 10,000 rms symmetrical amps as standard. When Class R fuses and fuse kits are installed, 30-200 amp switches have a cUL Listed short circuit rating of 100,000 rms symmetrical amps.

Features:

• 30-600 Amperes
• 240 Volts AC, 250 Volts DC
• 50/60 Hz
• Certifications and Standards
• UL/cUL Listed (UL 98/CSA-C22.2 No.4-04)
• NEMA Enclosed Safety Switch Standard KS1-2001
• Applications: Residential; Light commercial
• Galvanized steel enclosure feastures a durable polyester powder-coat finish that offers superior rust protection in outdoor applications
• Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
• Self-leveling, three-point mounting pattern speeds installation and simplifies ganging in close quarters
• Integral cover interlock on 30-200A disconnects for added protection
• Highly visible ON/OFF label
• Quick-make-and-break mechanism and plated contacts
• Highly visible, easy-to-grip red handle accepts one padlock in the OFF position
• Visible confirmation of plated blade contact positions
• Spring-reinforced fuse clips; Suitable for Class H, K or R fuses, where applicable
• Clear line shield (400-600 A models)
